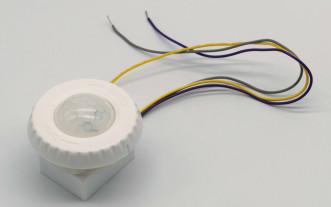

HP03VRH PIR Sensor With 12VDC Input Voltage Dimmable Function IP66 Remote Control

Name: HP03VRH PIR Sensor With 12VDC Input Voltage Dimmable Function IP66 Remote Control
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : HP03VRH

Certification : CE ROHS

Place of Origin : China

MOQ : 120pcs/ctn

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : White

Warranty : 3 Years

Function : Dimmabe

IP : 66

Contact Now

HP03VRH PIR Sensor With 12VDC Input Voltage Dimmable Function IP66 Remote Control

*HP03VRH 12VDC PIR Highbay Sensor.pdf Specification*

Features:

12VDC Input

waterproof IP66

PIR Sensor for max 12M Height

Bi-level Dimmable

Daylight Threshold

Remote Contro

Sensor Parameter:

Detection Area	25%/50%/75%/100%
Holdtime	5s/30s/1min/2min/3min/5min/10min/15min/20min/25min/ 30min/45min/60min/90min/120min
Daylight Threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Standby Dimming Level	10%/20%/30%/50%
Standby Period	0s/5s/30s/1min/2min/3min/5min/10min/15min/20min/ 25min/30min/ 45min/60min/+∞

Other Parameter:

Input Range	12VDC
Voltage Range	12-24VDC
Working Temp	-40°C~+70°C
Certification	CE ROHS
IP Rating	IP66

Wiring Diagram:
